Ignition Coils



Dyna Performance Replacement Coils are high tech, top quality coils, designed for maximum performance for your Motorcycle. They produce spark voltages in excess of 30,000 volts and spark energies second to none

Dyna Coils are made to replace stock coils. Choose from three configurations and five variations of resistance for different applications. Dyna Coils work with point ignitions, aftermarket electronic ignitions and factory electronic ignitions.

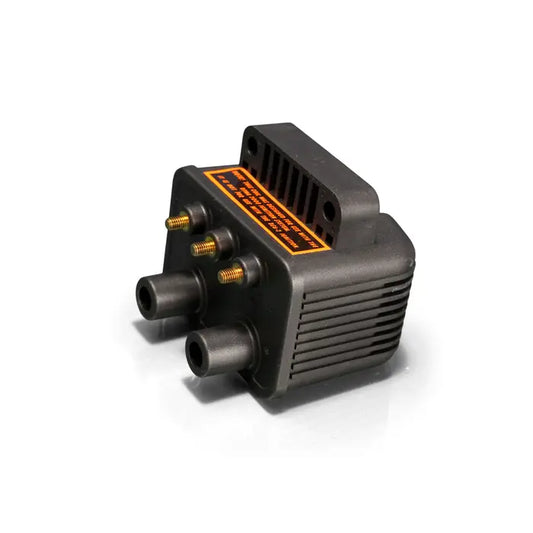

Dyna Coils

Maximum Performance

Dyna Performance Replacement Coils are advanced, high-quality coils engineered for peak Motorcycle performance. They generate spark voltages over 30,000 volts with unmatched spark energies.

Dyna Coils

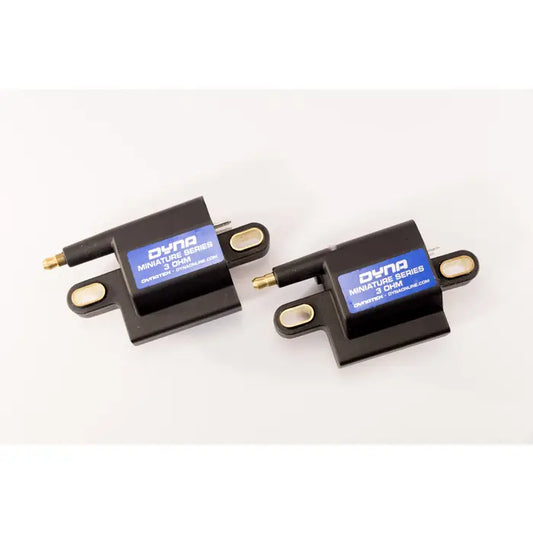

Miniature Series Coils

Featuring advanced magnetic core technology, Dynatek's Miniature Series Coils provide high output in a compact package, perfect for concealed builds.

Dyna Coils

Coil-On-Plug

The Coil-On-Plug Kit is constructed to handle extreme environments while delivering high spark energy.

Features

  • No exposed laminations to rust and degrade performance
  • High voltage and primary terminals machined from brass
  • Ultrasonically welded and sealed against moisture
  • Compact size fits easily under stock covers
  • Peak gap current in excess of 50mA
  • High impact thermoplastic housing
  • Over 40,000 volts per output
  • Accepts 7 to 8.8mm wires
  • 1 year warranty

Coil Selection

Before selecting a coil, check the coil primary resistance requirements as specified by the manufacturer of the ignition being used.

Requirements

Single Plug Head:

  • Single Fire - Use two single output coils, street or strip.
  • Dual Fire - Use one dual output coil, street or strip.

Dual Plug Head:

  • Single Fire - Use two dual output coils, street only.
  • Dual Fire - Use two dual output coils, street or strip.

Dual Plug Head, single fire racing applications:

  • Use two DC2-1, 1.5 ohm coils, connected in series for each cylinder. Since these coils are dual tower, one tower of each coil must be shorted to chassis ground.

Dyna 4000 Pro Ignition:

  • Must use DC9-1 or DC9-2. The Dyna 4000 ignition system is designed for racing only and is matched to the characteristics of the DC9-1 coil for optimum energy production.
  • Recommended - DC7-1, DC8-1, DC10-1, DC3-1, DC6-1. Use coil with 5.0 ohms primary resistance for street use, 3.0 ohms primary resistance for racing applications.
